PF Condenser Assembly
Automatically assembles parallel-flow condenser components in the correct sequence and alignment, producing consistent cores faster than manual assembly for HVAC and automotive cooling.
Below are automation machines Xtrotech has designed and built for manufacturers across automotive, electronics, glove and packaging industries. Each is custom-engineered — filter by category, or ask us to design one for your line.
Automatically assembles parallel-flow condenser components in the correct sequence and alignment, producing consistent cores faster than manual assembly for HVAC and automotive cooling.
Builds radiator cores by stacking and aligning fins and tubes accurately and repeatably, cutting assembly time and core-to-core variation.
Feeds parts into the line in the correct orientation at a steady rate, eliminating manual loading and keeping downstream processes running without stoppages.
Loads parts into furnaces automatically with consistent placement and timing, improving safety and removing operators from a hot, repetitive task.
A robot picks parts, orients them correctly and inspects each piece in real time using cameras and custom inspection rules, raising inspection speed and quality stability.
Integrated system that feeds and processes seeds, inspects them with vision cameras, and laser-marks each with an ID code for full traceability back to tree or batch.
%20Inspection%20%26%20Sorting%20-%20Auto%20Double%20Spring%20Inspection%20%26%20Processing.avif)
Inspects and processes two springs in parallel using vision, checking dimensions and defects at high throughput while sorting out non-conforming parts.
Vision-based inspection and processing of springs, measuring geometry and detecting defects in real time to stabilise quality and reduce manual checking.

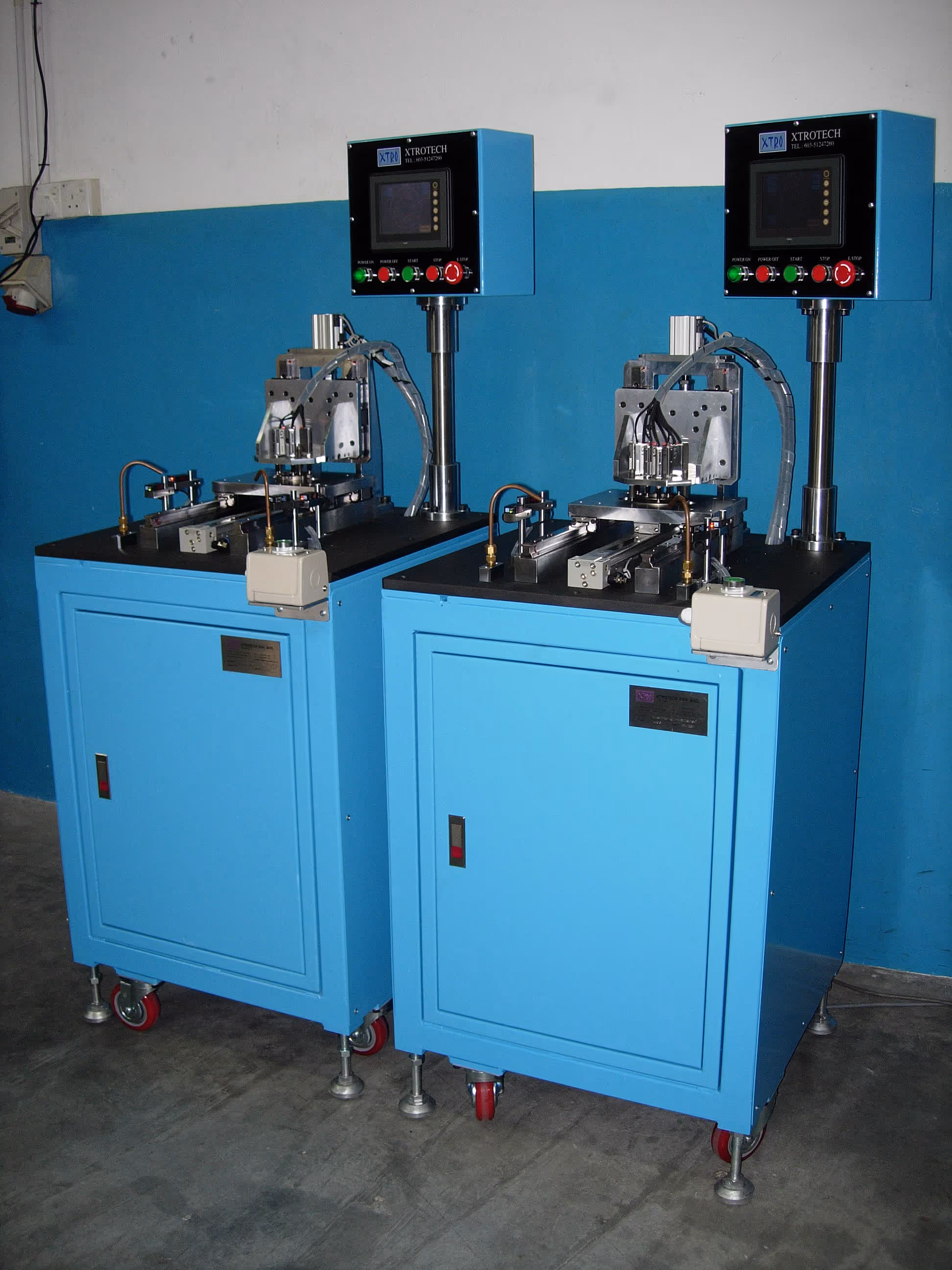

Custom automated measuring and gauging stations that capture critical dimensions precisely and log results for SPC and traceability.

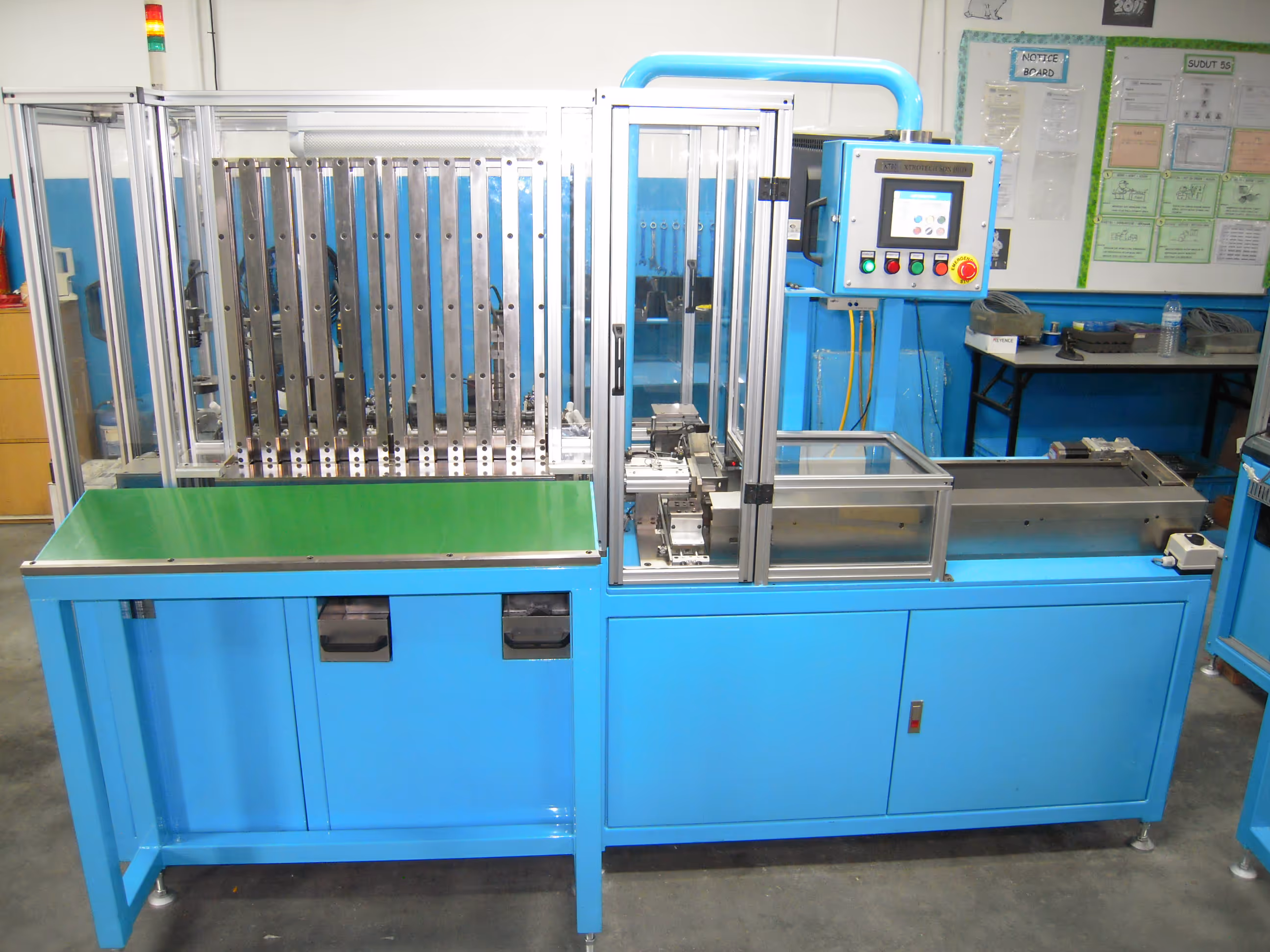

Inspects compressor valve plates with machine vision to detect surface and dimensional defects, ensuring only conforming plates continue down the line.

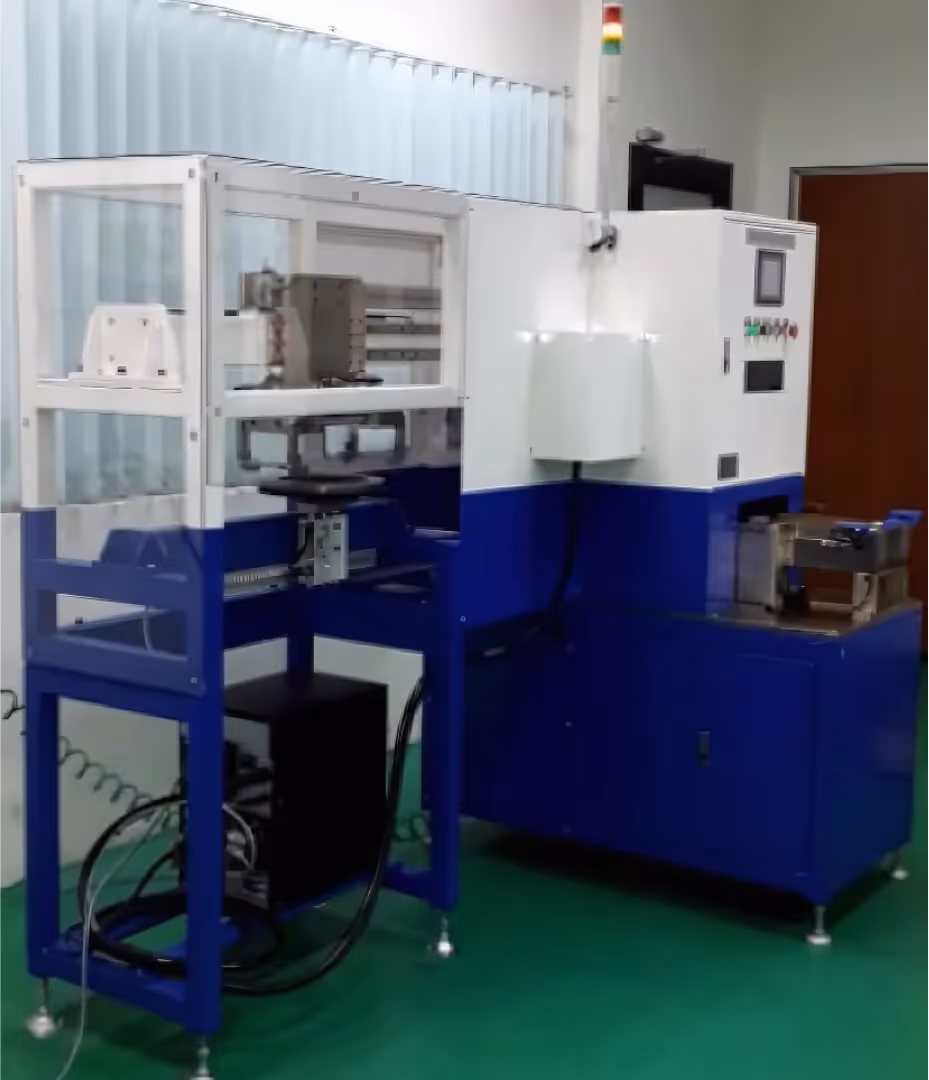

Marks flywheels with permanent codes for identification and traceability, integrated with handling so parts are marked in-line at production speed.

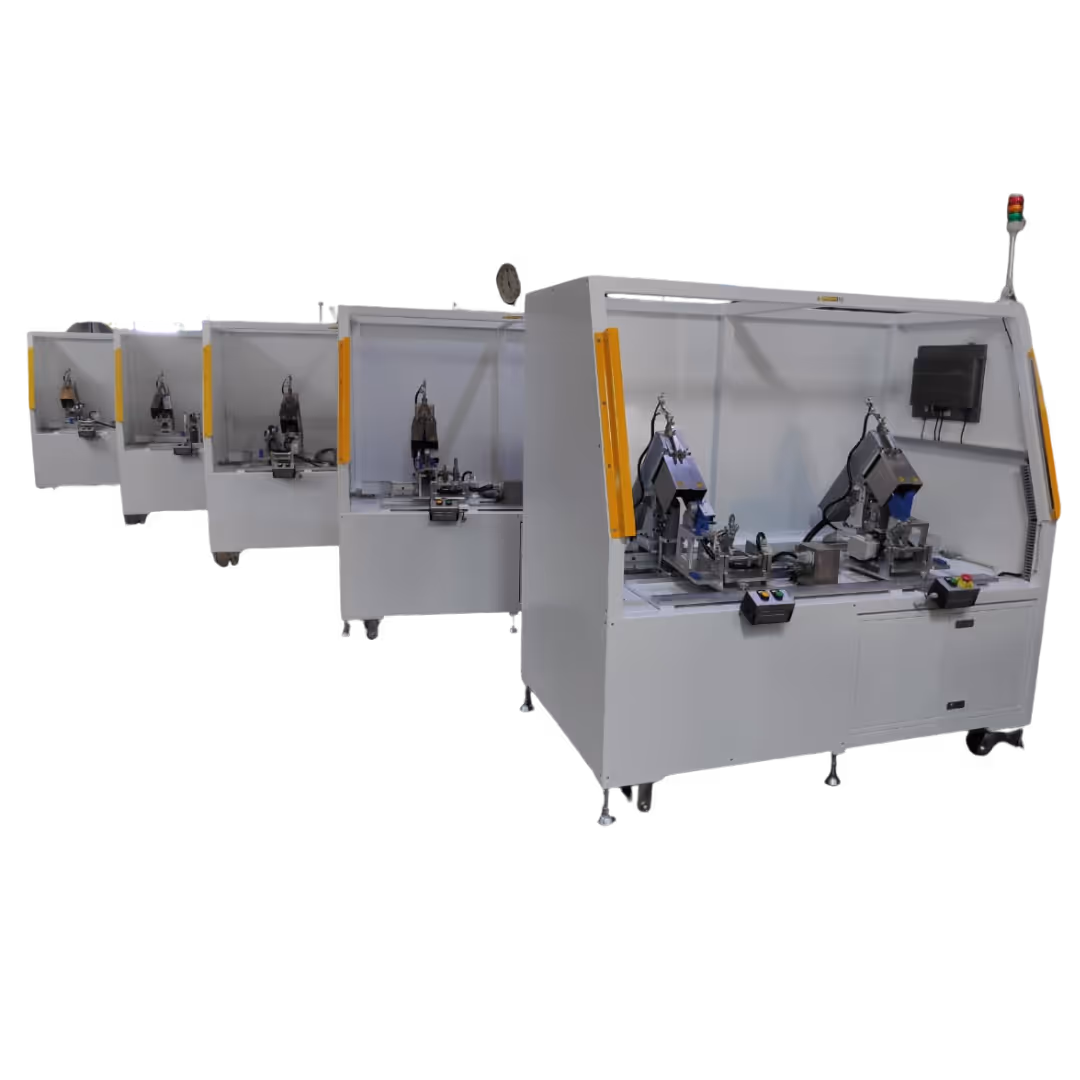

Applies permanent laser marks to automotive front grilles for part ID and traceability, replacing slower or less durable marking methods.
Marks glove formers with durable ID codes for tracking across the glove-dipping production process.

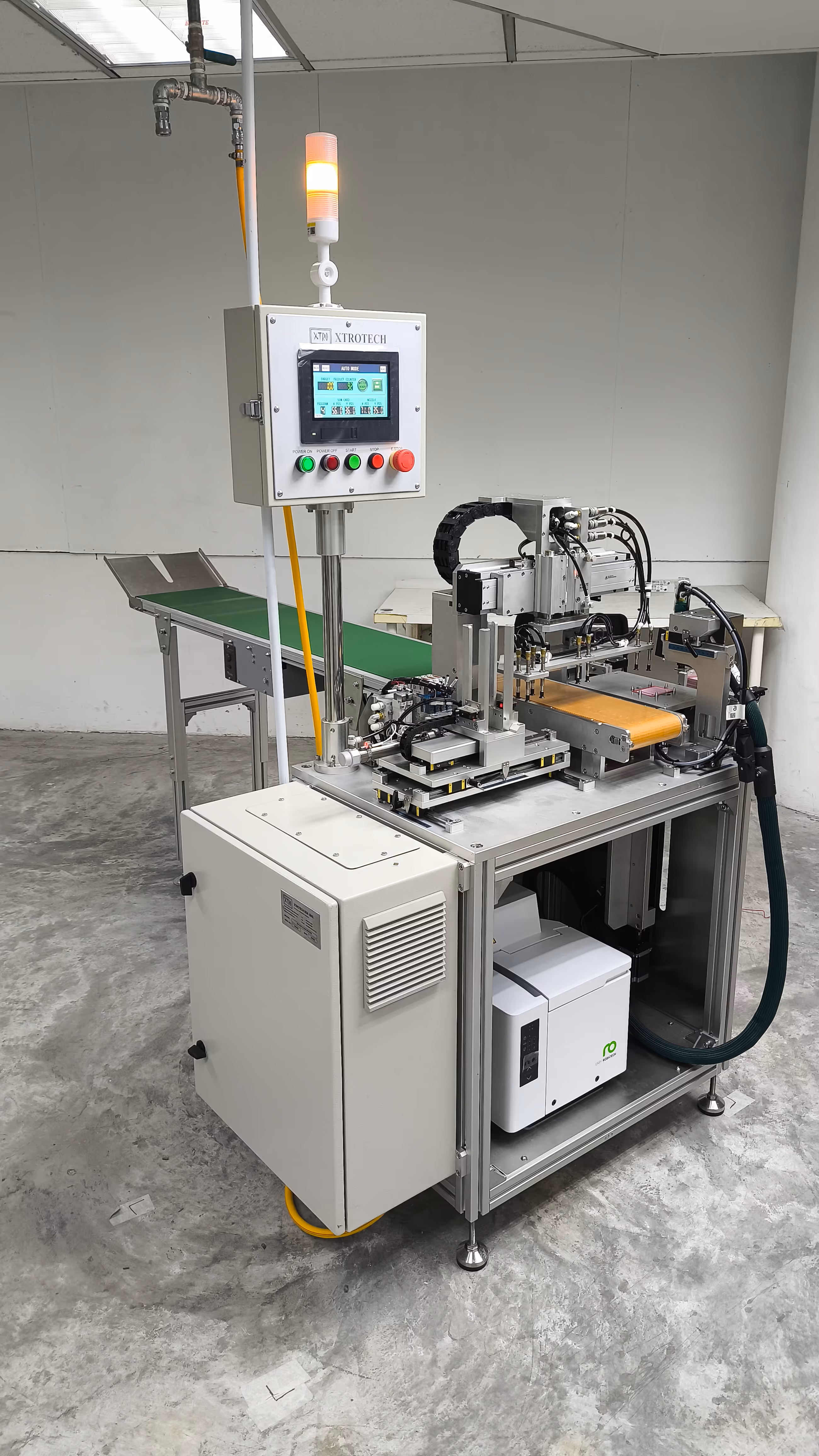

Dispenses and applies adhesive to SIM-card components precisely and consistently, increasing speed and reducing glue waste and rejects.

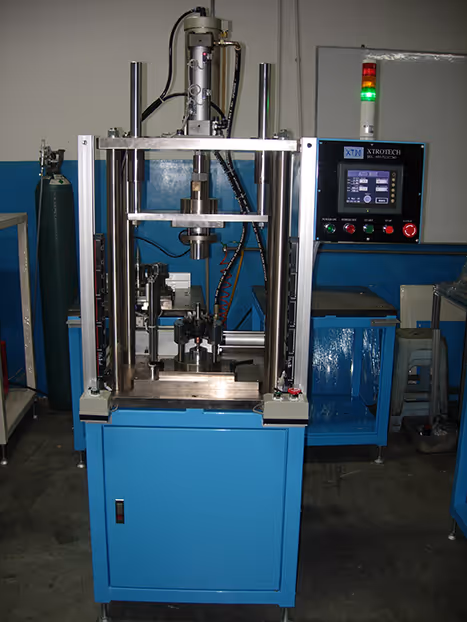

Presses bearings into housings to the correct depth and alignment automatically, ensuring repeatable fit and removing a strenuous manual step.
Cuts condenser side plates to length accurately and repeatably, feeding clean, consistent parts into downstream assembly.

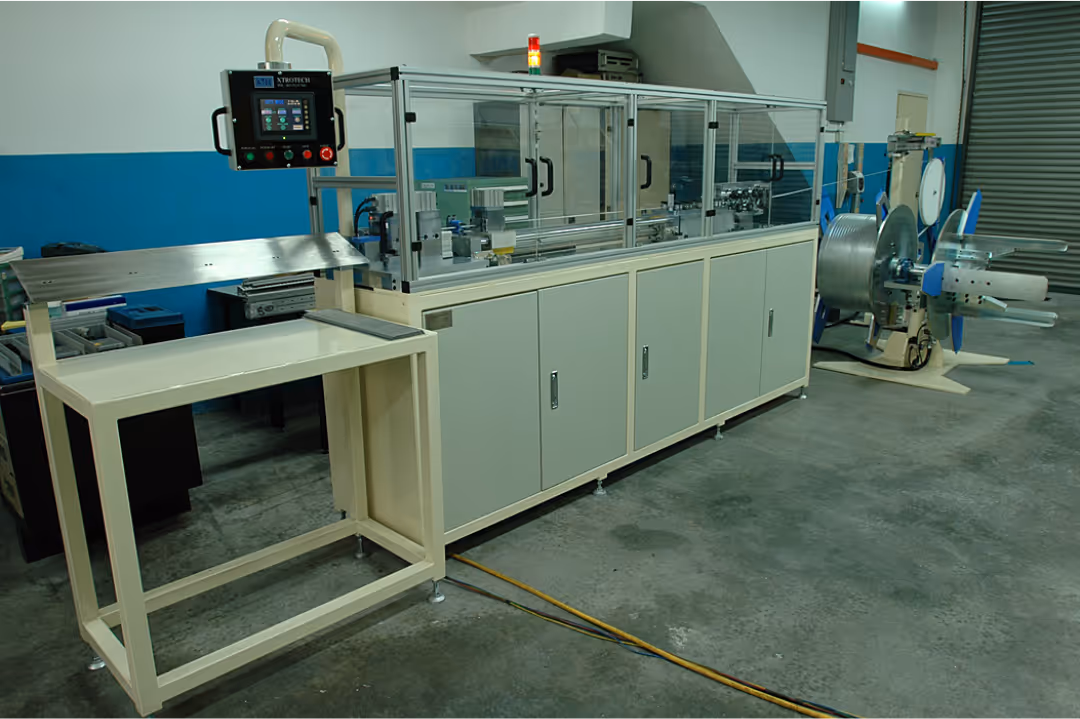

Straightens and cuts condenser tubing to precise lengths in one automated flow, improving accuracy and throughput.
Trims slots on two glove former bases at once for higher output, with consistent geometry across parts.
Forms heat-exchanger fins to exact profiles at high speed, delivering uniform fins for condenser and radiator production.

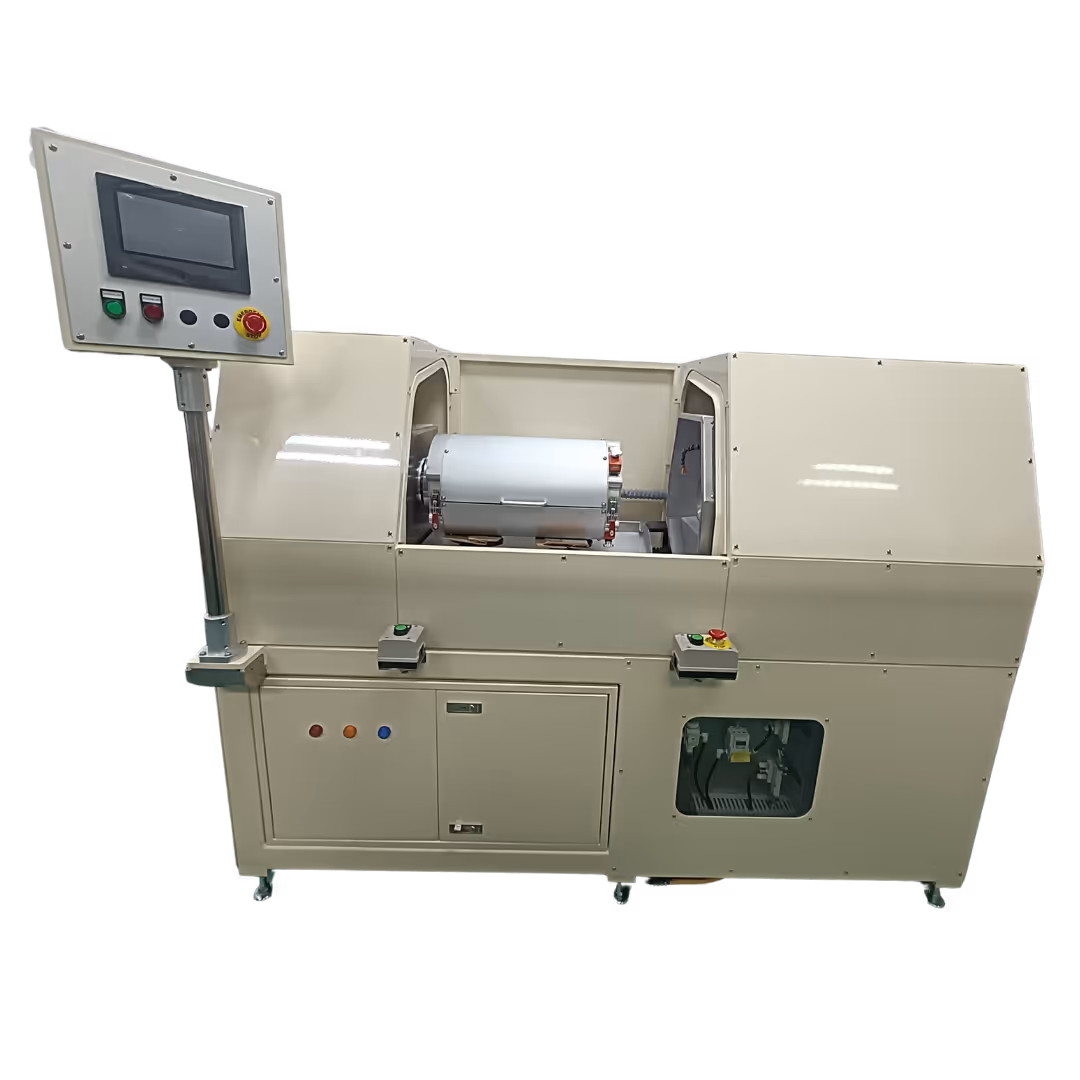

Grinds glove former bases to a consistent finish and dimension, improving surface quality and reducing manual grinding labour.
Automates the jiggering and forming of glove former base sockets for repeatable shape and faster cycle times.

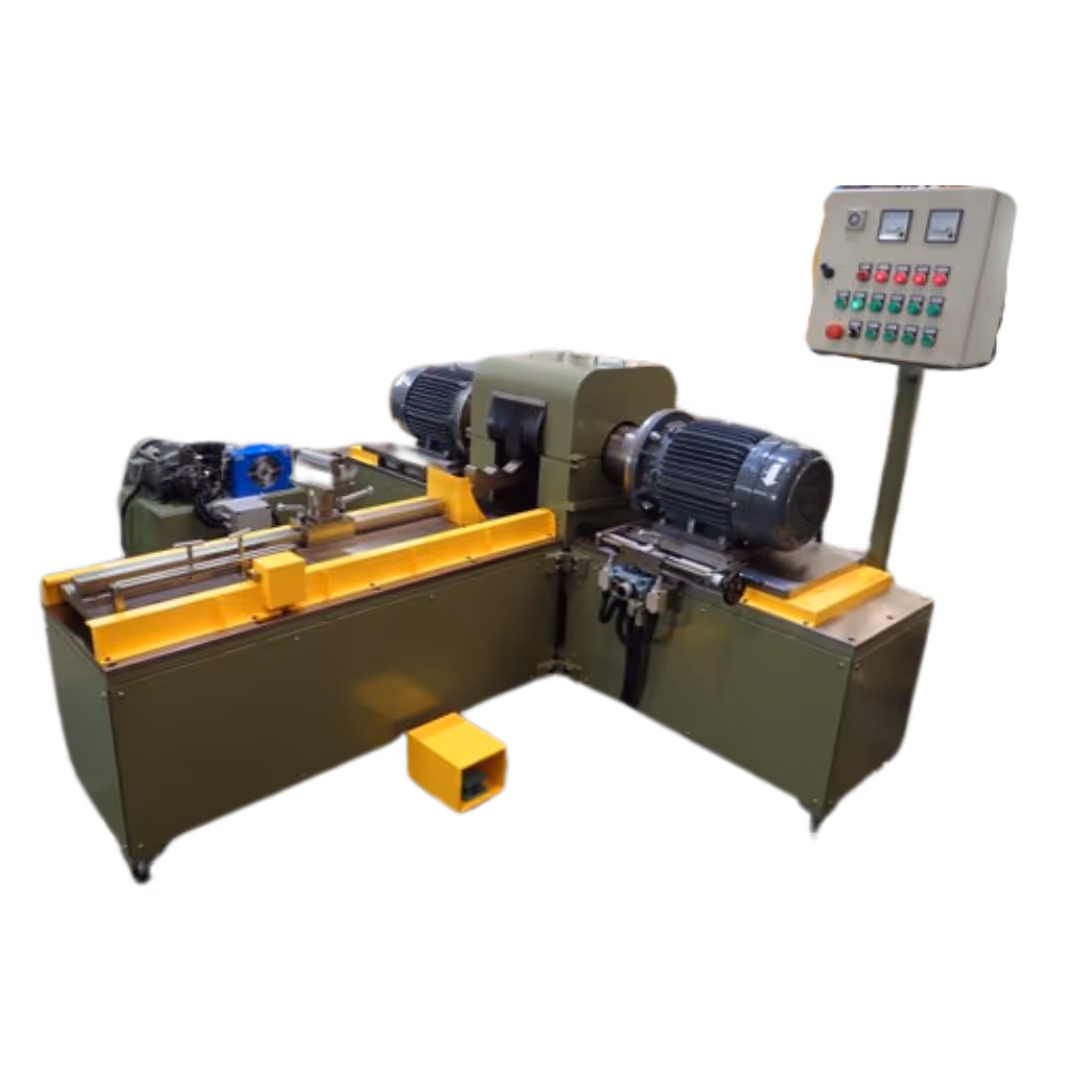

Grinds the eye of leaf springs to specification accurately and repeatably, raising quality and removing a skilled manual operation.

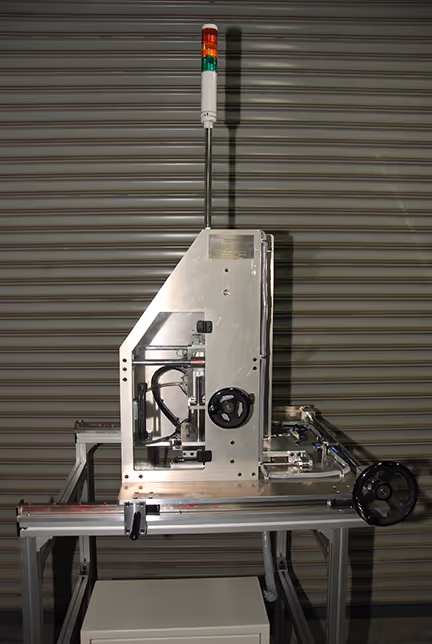

Inserts leaflets and inserts into packaging automatically and reliably, increasing packing speed and accuracy.

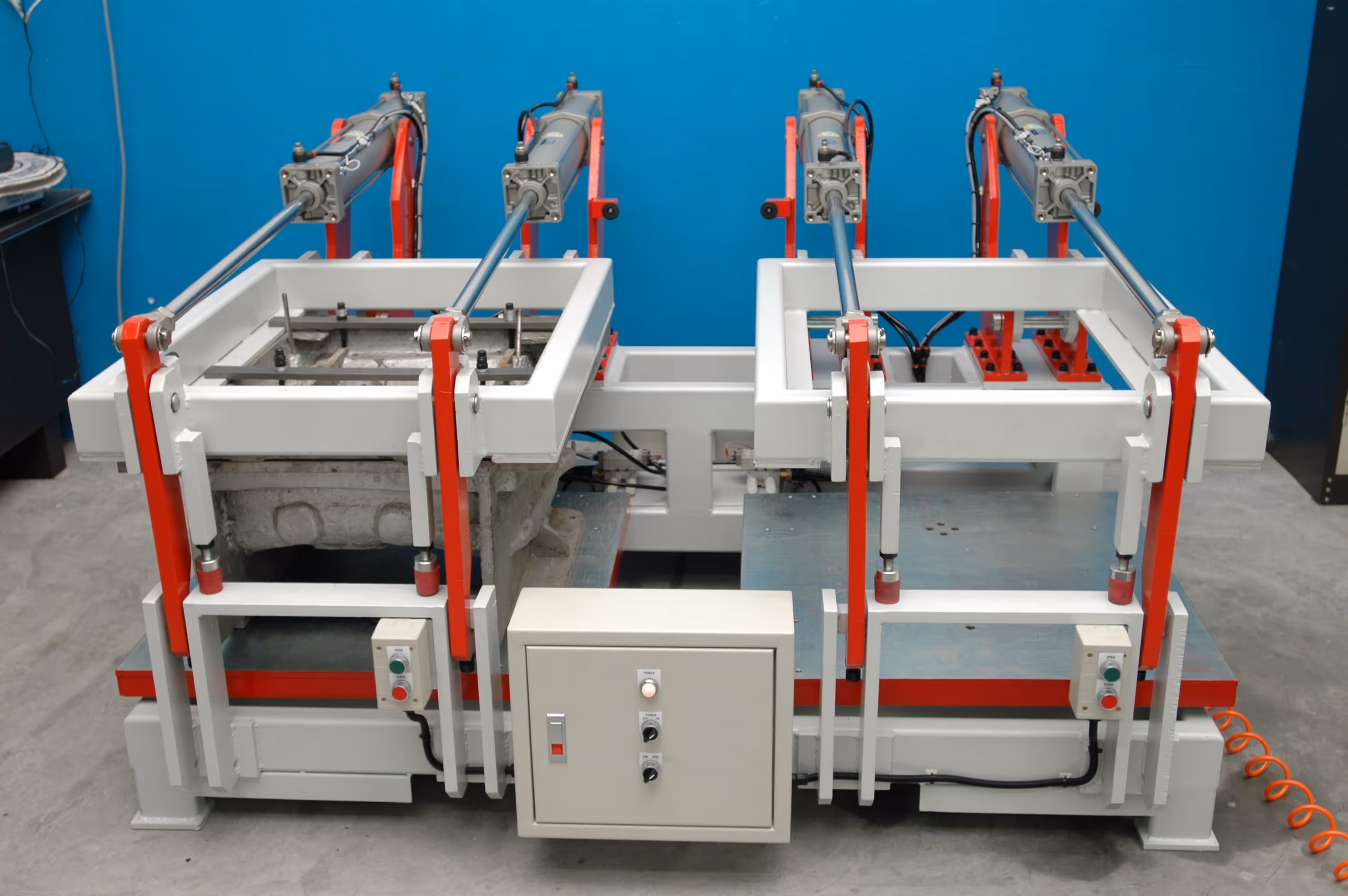

Transports and positions molds automatically within the process, reducing manual handling and improving cycle consistency.
Picks parts and places them precisely at the next station at high speed — a flexible building block across assembly and packaging lines.

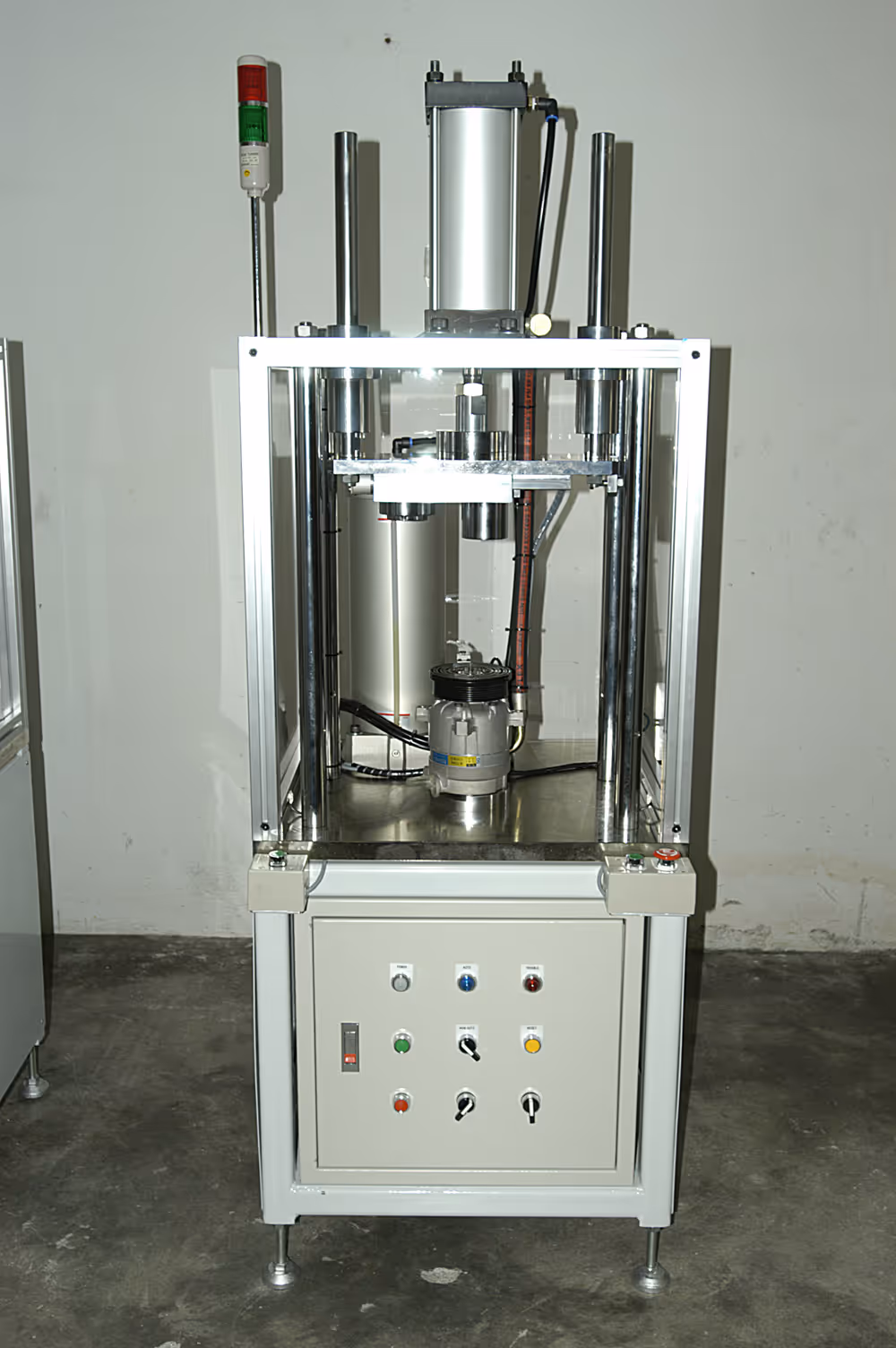

Inserts pulleys into assemblies to the correct position and fit automatically, ensuring repeatable quality.
Cuts slots and multiple cuts accurately in one automated operation, increasing throughput and consistency over manual cutting.
Automated TIG welding with programmable parameters, precise torch motion and robust fixturing — consistent welds without depending on scarce skilled welders.

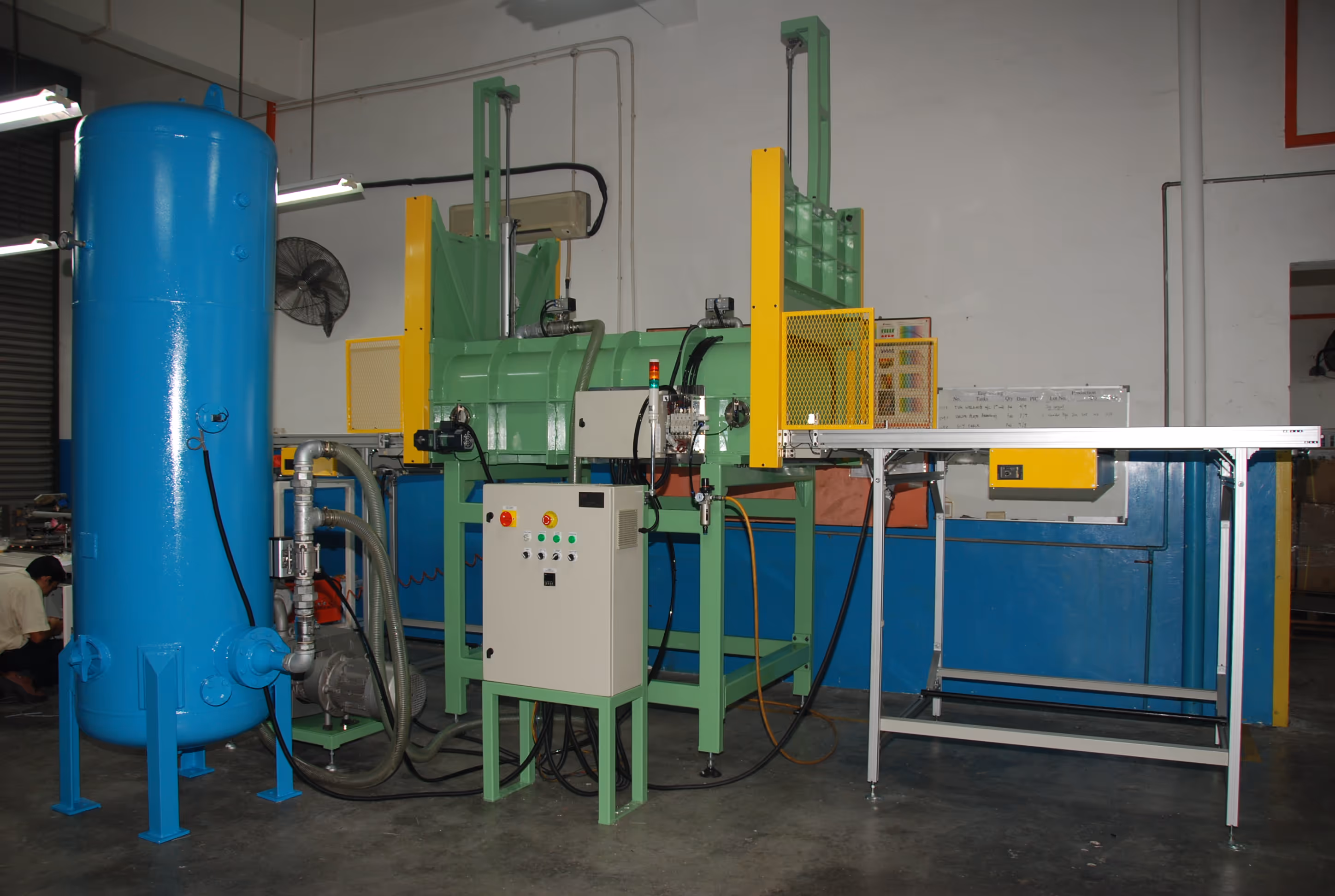

Crushes and processes material under vacuum conditions in a controlled, automated cycle for consistent results and safer operation.

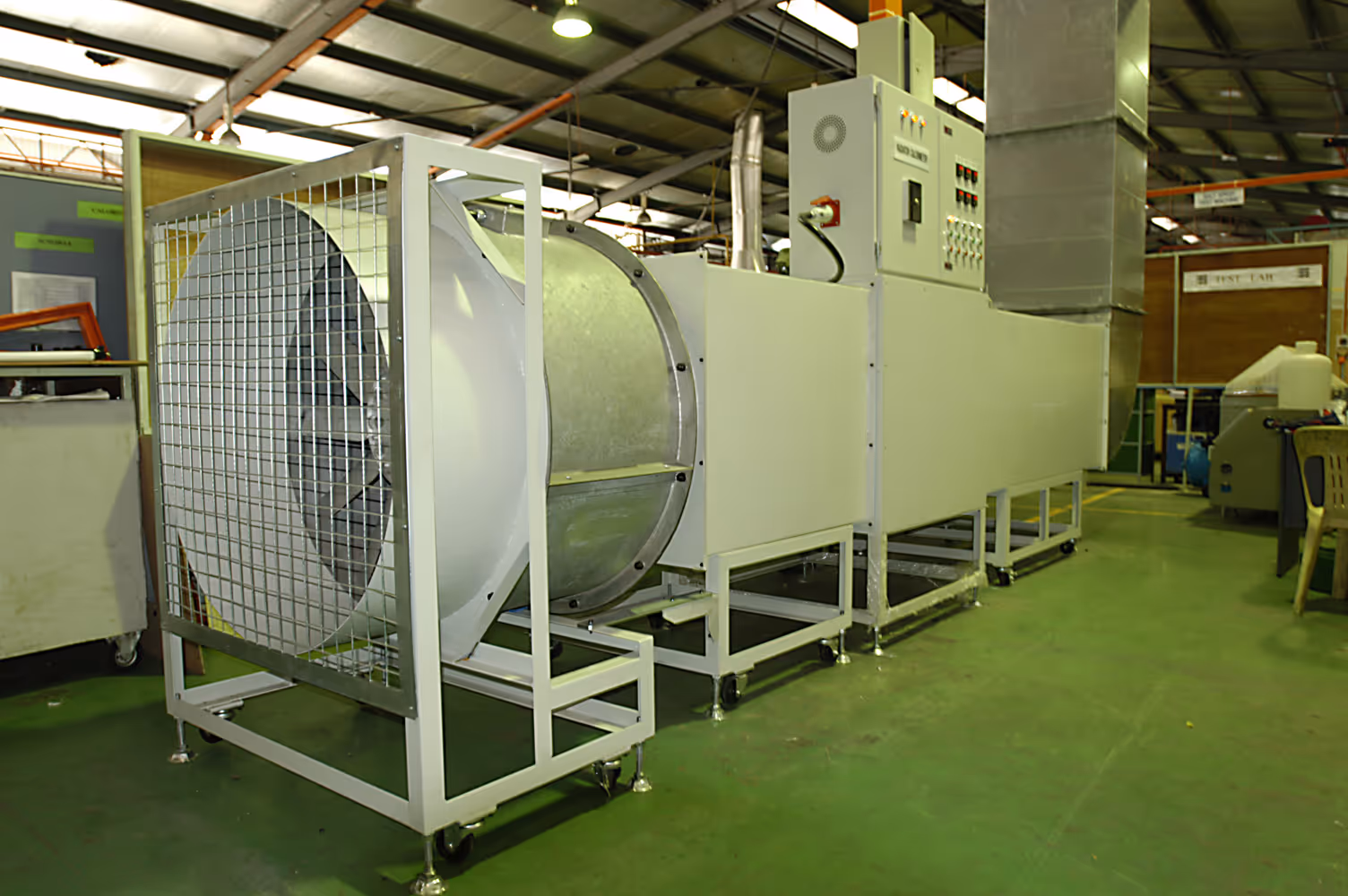

Automated calorimeter testing station that measures thermal and energy performance precisely for QA and product validation.

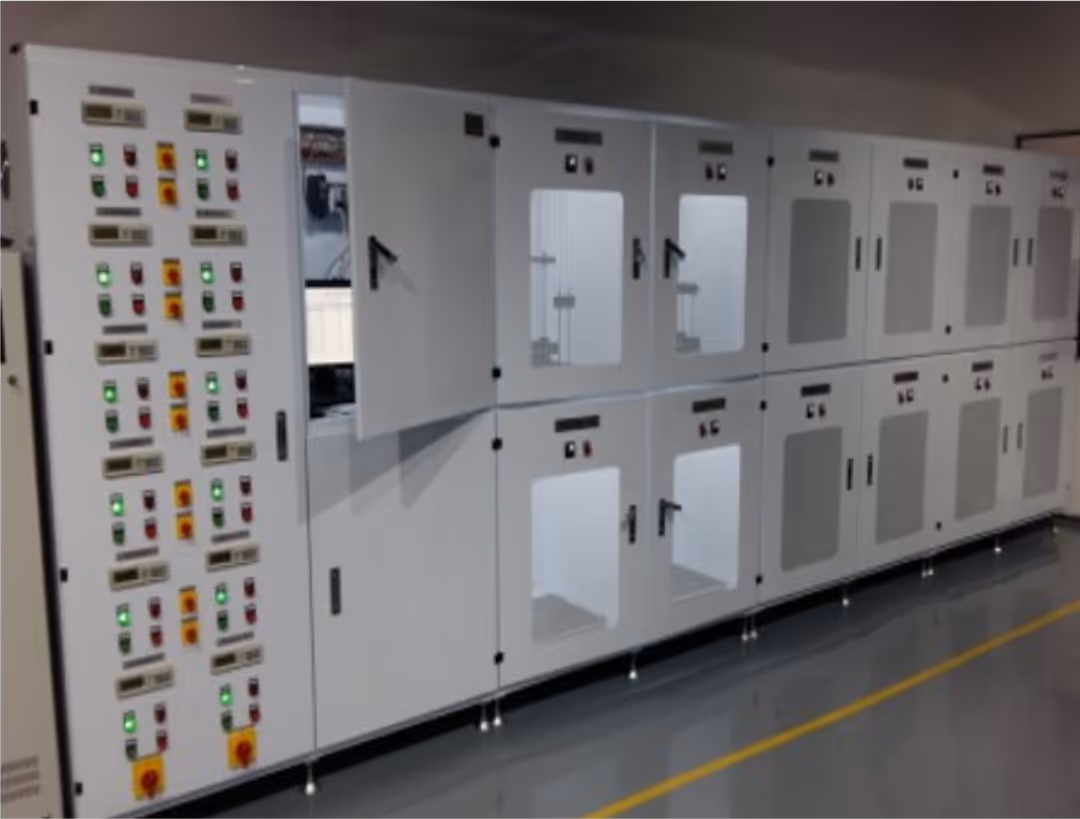

Tests motor lock-rotor performance automatically against set parameters, verifying performance and safety before parts ship.
Cycles parts under pressure to validate durability and fatigue life, ensuring components meet endurance requirements.
Manual picking and visual checking were slow, inconsistent and operator-dependent, leading to missed defects and limited throughput.
A robot vision system that picks parts, orients them correctly and inspects each piece in real time using cameras and customised inspection rules.
~99% inspection accuracy with consistent defect detection, throughput roughly doubled versus manual checking, and ~98% uptime — cutting manual labour and giving full traceability.
The customer needed to trace each seed back to its tree or batch; manual checking and marking were slow and error-prone.
An integrated system that feeds and processes seeds, inspects them with vision cameras, and laser-marks each seed with an ID code.
100% per-seed traceability via laser ID, ~98–99% vision inspection accuracy, rejection rates cut by roughly 60%, and far less manual handling while output rose.
Manual TIG welding was slow, inconsistent and dependent on skilled welders, creating bottlenecks and variable weld quality.
An automated TIG welding machine with programmable parameters, precise torch motion and robust fixtures holding parts in a repeatable position.
~97–98% first-pass weld yield, welding cycle time cut by roughly 40%, far less dependence on scarce skilled welders, and stable quality shift after shift.
A cooling-component manufacturer assembled parallel-flow condenser cores by hand. Output was capped by manual pace, and small misalignments between fins, tubes and plates caused leaks and rework downstream.
Xtrotech designed an automated assembly cell that sequences and aligns condenser components precisely, with integrated checks so every core is built to the same geometry before it moves on.
Consistent core-to-core quality with assembly time cut by roughly 35-45%, a sharp drop in alignment-related rework, and a repeatable process that no longer depends on the speed or skill of individual operators.
A glove producer ground and finished former bases manually - a slow, strenuous, dust-heavy job that was hard to staff and gave inconsistent surface quality, affecting the dipping process downstream.
Xtrotech built an automated grinding and finishing machine (with a double-station variant) that processes former bases to a consistent dimension and surface finish, removing operators from the strenuous task.
Uniform finish across parts, throughput roughly doubled with the double-station setup, far less manual labour in a tough environment, and more stable quality feeding the dipping line.
Send us your part, cycle time and quality issue. Our engineers will propose the right automation approach.
